SELF-DISCHARGING BIN ST

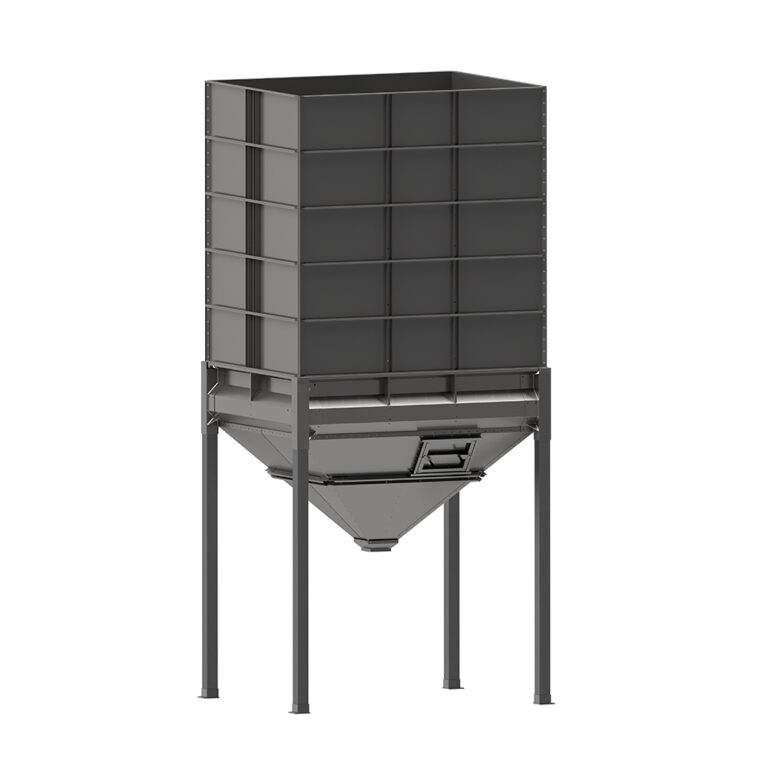

Tornum’s self-discharging bin ST is specially designed for storing grain and is available in several different sizes. It can be assembled at ground level in sections which are then lifted together.

Product Description

Tornum’s self-discharging bin ST is specially designed for storing grain and is available in several different sizes. It can be assembled at ground level in sections which are then lifted together.

FEATURES
• Made from hot-dip galvanized steel
• Each section has a vertical height of 505 mm
• Can be expanded by adding sections onto the main hopper
• Smooth interior surfaces makes it easy to clean and suitable for wet grain
• The design allows several assembly methods, which saves time
• Outlet 200 x 200 mm
• The hopper is completely screwable and equipped with square legs

OPTIONS
• Inspection hatch with safety grid, floor mounted
• Conditioning lateral
• Level indicator
• Temperature monitoring
• Outlet connection
• Partitioning wall

Model:	A (mm):	B (mm):	C (mm):	D (mm):
2×2	2020	2020	1560	–
2×2.5	2020	2515	1675	–
2×3	2020	3010	1905	–
2.5×2.5	2515	2515	1905	–
2.5×3	2515	3010	2010	–
2.5×4	3930	2515	2525	–
2.5×5	4920	2515	2525	990
2.5×6	5910	2515	2010	2900
3×3	3010	3010	2095	–
3×4	3930	3010	2370	–
3×4.5	4425	3010	2370	495
3×5	4920	3010	2370	990
3×6	5910	3010	2095	2900

Model:	No. of legs:	Hopper volume (m³):	Section volume (m³):
2×2	4	3.1	1.8
2×2.5	4	4.2	2.3
2×3	4	5.4	2.8
2.5×2.5	4	5.6	2.9
2.5×3	4	7.0	3.5
2.5×4	6	11.6	4.6
2.5×5	6	14.7	5.8
2.5×6	6	14.0	7.0
3×3	4	8.8	4.2
3×4	6	13.4	5.6
3×4.5	6	15.3	6.3
3×5	6	17.2	7.0
3×6	6	17.6	8.4
