INTAKE PIT TGS

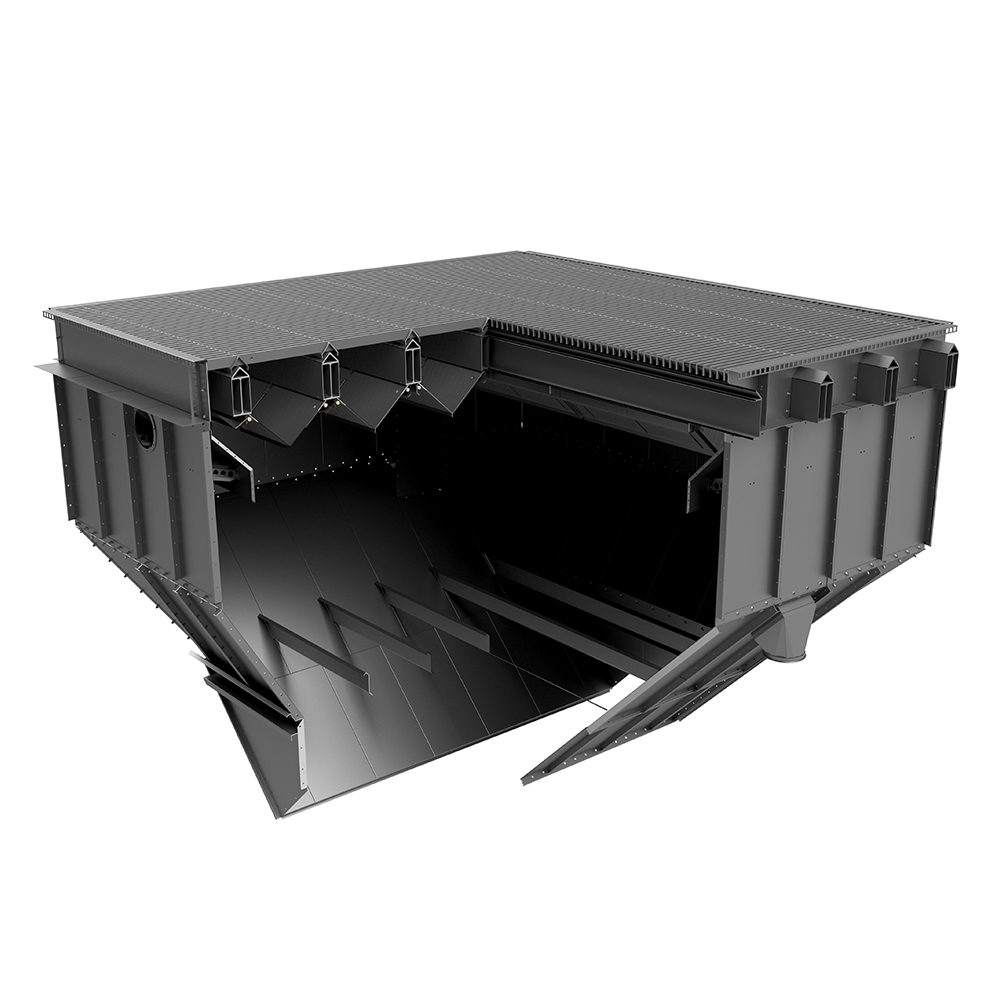

Tornum’s intake pit TGS offers a large volumetric capacity despite its shallow depth. The pit has a smooth interior for good hygiene and minimal cleaning. The TGS intake pit is suitable for chain conveyors up to 400 tons per hour and is intended for installation in a culvert.

Product Description

Tornum’s intake pit TGS offers a large volumetric capacity despite its shallow depth. The pit has a smooth interior for good hygiene and minimal cleaning. The TGS intake pit is suitable for chain conveyors up to 400 tons per hour and is intended for installation in a culvert.

FEATURES
• Made from hot-dip galvanized sheet steel with external reinforcements

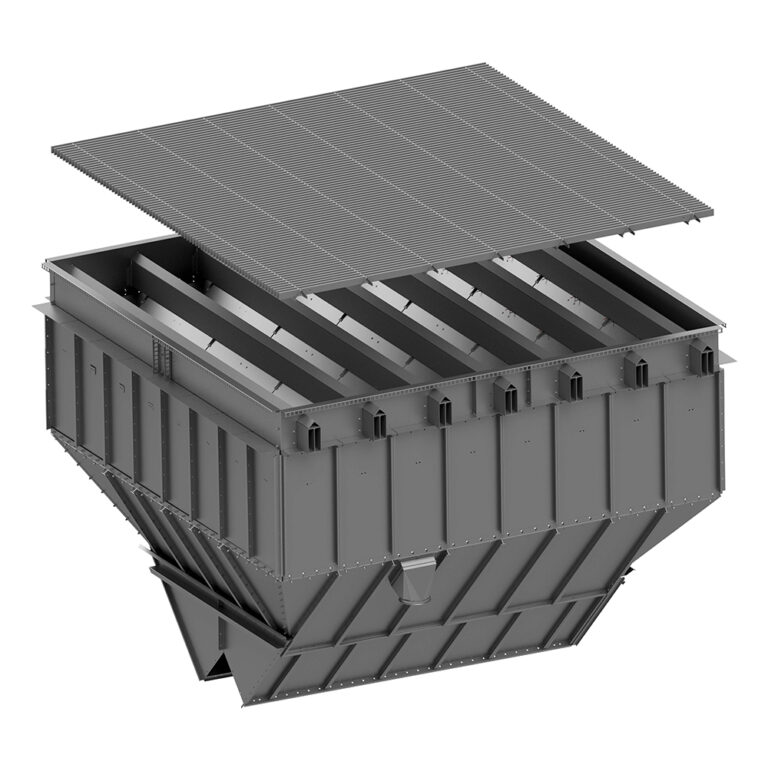

• Fitted with strong load bearing beams to facilitate suspension and to support load carrying gratings
• Smooth interior for good hygiene and minimal cleaning
• Bolted design

OPTIONS
• Level indicator
• Load carrying gratings
• Side protection for receiving pit

Culvert depth: A=3000 mm: A=3500 mm: A=4000 mm: A=4500 mm: A=5000 mm:
B=2075 mm 8 m³ 10 m³ 11 m³ 13 m³ 14 m³
B=2440 mm 11 m³ 14 m³ 16 m³ 18 m³ 20 m³
B=2890 mm 15 m³ 18 m³ 21 m³ 24 m³ 27 m³
B=3340 mm 19 m³ 23 m³ 27 m³ 30 m³ 33 m³
