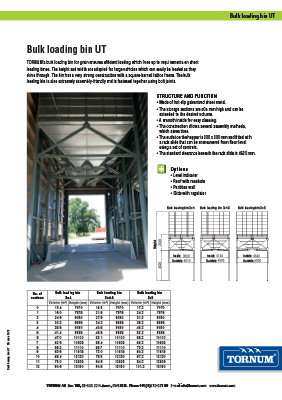

BULK LOADING BIN UT

Tornum’s bulk loading bin enables efficient loading for large vehicles with its robust square-barred lattice frame. It’s easy to install using screws and nuts.

Product Description

Tornum’s bulk loading bin for grain storage ensures fast and efficient loading. The height and width are adapted to large vehicles which can easily be loaded as they drive through. The bin has a very robust design with a square-barred lattice frame. The bulk loading bin is also extremely easy to install and is assembled with screws and nuts.

Features
• Made from hot-dip galvanized sheet steel
• Storage sections are 505 mm high and can be extended to the desired volume
• Smooth interior surfaces for easy cleaning
• The construction allows several installation methods, which saves time.
• The bin outlet is 300 x 300 mm and is fitted with a rack slide that can be manoeuvred from floor level using a control rod
• Standard clearance beneath the rack slide is 4,620 mm

Options
• Level indicator
• Inspection hatch with safety grid, floor mounted
• Partitioning wall
• Shutter with controls
• Motorised shutter
• Ladder
• Hand rails

No. of sections:	Size 3*4:		Size 3*4.5:		Size 3*5:
No. of sections:	Volume (m³):	Height (mm):	Volume (m³):	Height (mm):	Volume (m³):	Height (mm):
0	13.4	7070	15.3	7070	17.2	7070
1	19.0	7575	21.6	7575	24.2	7575
2	24.6	8080	27.9	8080	31.2	8080
3	30.2	8585	34.2	8585	38.2	8585
4	35.8	9090	40.5	9090	45.2	9090
5	41.4	9595	46.8	9595	52.2	9595
6	47.0	10100	53.1	10100	59.2	10100
7	52.6	10605	59.4	10605	66.2	10605
8	58.2	11110	65.7	11110	73.2	11110
9	63.8	11615	72.0	11615	80.2	11615
10	69.4	12120	78.3	12120	87.2	12120
11	75.0	12625	84.6	12625	94.2	12625
12	80.6	13130	90.9	13130	101.2	13130
